Custom Made Band Knife Blade For

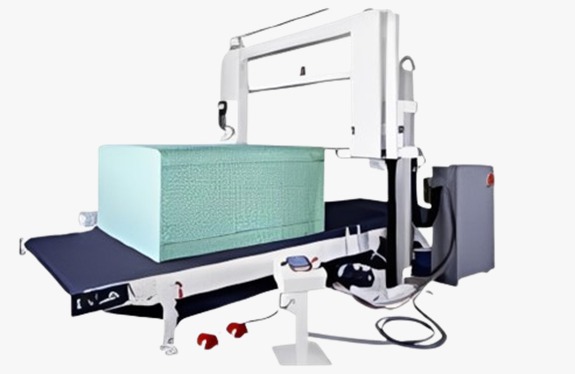

Horizontal / Circular Cutting Machine
Bandknife blades are versatile tools used in Horizontal and Circular cutting machines to effectively cut and split a wide range of materials, including PU Foam, Viscoelastic Foam, Rebonded Foam, Memory Foam, Rigid Foam and various types of sheets made from light or harder materials. Engineered to handle different thicknesses with precision, these blades are ideal for large-scale production operations. They excel in continuous slitting applications, maximising cutting capacity and ensuring uninterrupted workflow for enhanced efficiency.
Knife Edge / SBSE
The Single Bevel Single Edge blade is specifically designed for peeling and slicing tasks. It is frequently employed on horizontal cutting machines.
Knife Edge / DBSE
The Double Bevel Single Edge blade stands as the most ubiquitous cutting edge, serving various cutting, slicing, and peeling tasks. It finds application across vertical, horizontal, carousel, peeling, slicing, and CNC machines.
Knife Edge / DBSE Variable Bevel
The Double Bevel Single Edge Variable Bevel blade is primarily utilized on carousel machines, excelling in slicing thin sheets and ensuring precision in sheet thickness. With a bevel ratio of 1:4, it meets stringent tolerance requirements.
Concave – DBSE
Available TPI: 2 & 4 TPI
The Concave Double Bevel Single Edge, also known as the Scalloped Edge, undergoes profile grinding to create a hybrid version combining attributes of the Knife Edge and the Serrated profile, resulting in superior cutting performance. This profile, widely recognized as the most popular choice, finds applications across various industries. It is employed on both horizontal and vertical cutting machines.
Convex – DBSE
The Convex/Wavy-DBSE is a gentler and less aggressive alternative to the Concave/Scallop profile. It retains the advantages of a knife edge while allowing interrupted cutting without material tearing, thus minimizing dust generation. This profile is suitable for use with both horizontal and vertical cutting machines.
V tooth Serrated DBSE / Diamond Pointed Tooth
Available TPI: 6, 8, 10, 14 & 18 TPI
The V toothed pointed is a popular profile. This profile is aggressive as compared to the knife edge blade. Generates some dust. Good for cutting hard foams and helps in avoiding the sharpening mechanism on the cutting machine. Used on vertical, horizontal, carousel, and CNC machines.
Angle Tooth DBSE / C type
Available TPI: 2, 4, 6, 8, 10 & 14 TPI
The Angle Toothed Double Bevel Single Edge is far more aggressive in its cutting action.
Notch Tooth DBSE
The Notch Tooth DBSE is specifically engineered for foam cutting applications, offering exceptional precision and control. Its unique notch tooth design allows for clean and accurate cuts through various densities of foam materials, including polyurethane foam, memory foam, foam rubber and insulating material.
Flat Tooth DBSE
The Flat Top with Flat Notch Double Bevel Single Edge is an Hybrid which combines the Knife Edge with a Flat Notch to give a higher productivity through its interrupted cutting. Used on vertical, horizontal, carousel and CNC machines.
Width in mm | Thickness in mm |
|---|---|
25 | 0.45 / 0.50 / 0.60 |
30 | 0.45 / 0.50 / 0.60 |
35 | 0.50 / 0.60 / 0.70 |
40 | 0.50 / 0.60 / 0.70 |
50 | 0.60 / 0.70 / 0.80 / 0.90 / 1.00 |
60 | 0.60 / 0.80 / 1.00 |
Width in Inches | Thickness in Inches |
|---|---|
0.9842 | 0.0177 / 0.0197 / 0.0236 |
1.1811 | 0.0177 / 0.0197 / 0.0236 |
1.3779 | 0.0197 / 0.0236 / 0.0275 |
1.5748 | 0.0197 / 0.0236 / 0.0275 |
1.9685 | 0.0236 / 0.0275 / 0.0314 / 0.0354 / 0.0393 |
2.3622 | 0.0236 / 0.0314 / 0.0393 |
