Custom Made Band Knife Blade For Block Cutter - Guillotine & Vertical
Block Cutter Blades: Very few understand the critical importance of a Block Cutter blade. We go to great lengths to manufacture fail-proof block cutter blades because we understand the distress, frustration, and losses that can result from blade failure during the foaming process. Our block cutter blades are crafted with consideration for the challenges and losses you face when dealing with blade failure during foaming. We have been tested and approved by Laaderberg as a preferred supplier for their block cutter, recognized for our ability to provide fail-proof block cutter blades.

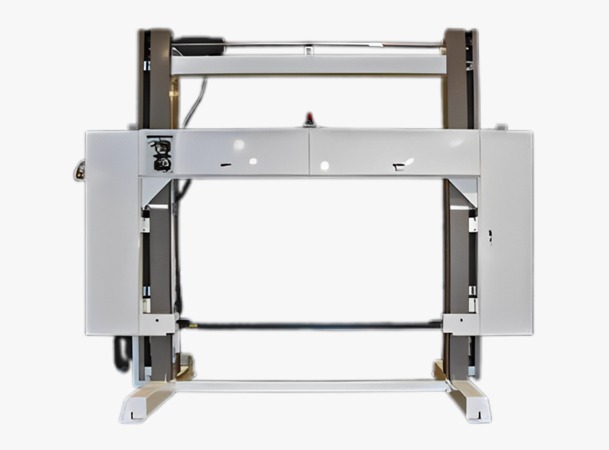

VCO: A foam block cutter compatible with Cannon Viking and China-made machines. Engineered for precision and efficiency in foam cutting, it ensures smooth, accurate cuts for consistent results. Versatile and capable of handling different foam types and thicknesses, it boosts productivity without compromising quality. With advanced features and sturdy construction, it’s a reliable upgrade for cutting operations, enhancing efficiency and productivity.
Knife Edge / DBSE
The Double Bevel Single Edge blade stands as the most ubiquitous cutting edge, serving various cutting, slicing, and peeling tasks. It finds application across vertical, horizontal, carousel, peeling, slicing, and CNC machines.
Concave – DBSE
The Concave Double Bevel Single Edge, also known as the Scalloped Edge, undergoes profile grinding to create a hybrid version combining attributes of the Knife Edge and the Serrated profile, resulting in superior cutting performance. This profile, widely recognized as the most popular choice, finds applications across various industries. It is employed on both horizontal and vertical cutting machines.
Convex – DBSE
The Convex/Wavy-DBSE is a gentler and less aggressive alternative to the Concave/Scallop profile. It retains the advantages of a knife edge while allowing interrupted cutting without material tearing, thus minimizing dust generation. This profile is suitable for use with both horizontal and vertical cutting machines.
V tooth Serrated DBSE / Diamond Pointed Tooth
Available TPI: 6, 8, 10, 14 & 18 TPI
The V toothed pointed is a popular profile. This profile is aggressive as compared to the knife edge blade. Generates some dust. Good for cutting hard foams and helps in avoiding the sharpening mechanism on the cutting machine. Used on vertical, horizontal, carousel, and CNC machines.
Notch Tooth DBSE
The Notch Tooth DBSE is specifically engineered for foam cutting applications, offering exceptional precision and control. Its unique notch tooth design allows for clean and accurate cuts through various densities of foam materials, including polyurethane foam, memory foam, foam rubber and insulating material.
Flat Tooth DBSE
The Flat Top with Flat Notch Double Bevel Single Edge is an Hybrid which combines the Knife Edge with a Flat Notch to give a higher productivity through its interrupted cutting. Used on vertical, horizontal, carousel and CNC machines.
VCO blade
Width in mm | Thickness in mm |
|---|---|
12 | 0.45 |
15 | 0.45 |
20 | 0.45 |
25 | 0.45 |
30 | 0.45 |
Width in mm | Thickness in mm |
|---|---|
0.4724 | 0.0177 |
0.5905 | 0.0177 |
0.7874 | 0.0177 |
0.9842 | 0.0177 |
1.1811 | 0.0177 |
Available Dimension for VCO
Length in mm | Width in mm | Thickness in mm |
|---|---|---|
1770 | 90 | 1.20 |
1800 | 63 | 1.00 |
1970 | 85 | 1.20 |
Length in Inches | Width in Inches | Thickness in Inches |
|---|---|---|
69.6850 | 3.5433 | 0.0472 |
69.6850 | 2.4803 | 0.0393 |
77.5590 | 3.3464 | 0.0472 |
